Geometry
Top Tube Length: 21"
Head Tube Angle: 74.5°
Seat Tube Angle: 71°
Chain Stay Length: 13.25"
Standover Height: 8.5"
BB Height: 11.6"

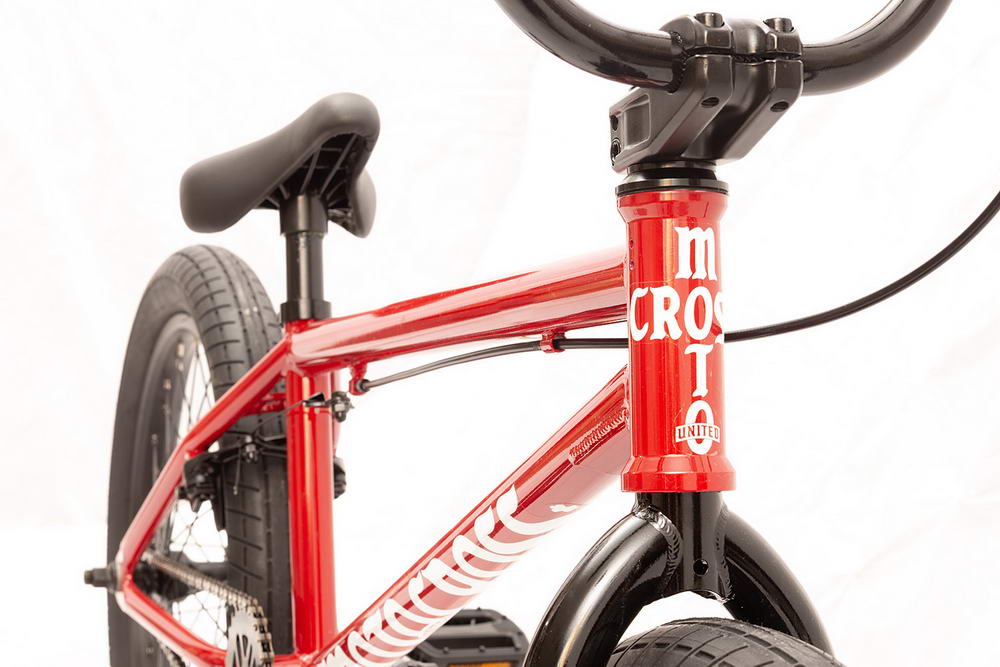

Frame: Chromoly Top Tube / 1020 Hi-Ten, Welded Brake Mounts, CNC Seat Stay Bridge, Embossed Logo Down Tube Gusset
Forks: CNC Chromoly Steerer Tube, Integr. Bearing Race, Tapered 1020 Hi-Ten Steel Legs
Bars: 1020 Hi-Ten Steel, 9" Rise, 29" Width, 1° Up Sweep, 12° Back Sweep
Grips: United Jimmy & United Bar Ends
Headset: United integrated, sealed bearings
Stem: United 50 mm Reach Top Load Stem
Rear Lever: Alloy
Rear Brake: 990 U-Brake

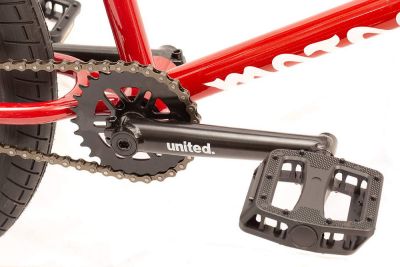

Cranks: Tubular Chromoly, 170 mm Length, 3pc, 19 mm 8-spline w/ Printed United Logo
BB: Sealed Mid BB
Sprocket: 28t Steel
Pedals: United Supreme Plastik
Chain: X410
Rear Rim: Alloy 36h Single Wall
Front Rim: Alloy 36h Aero Single Wall
Rear Hub: Sealed United Supreme Cassette Hub w/ 14 mm Chromoly Axle, 9t Driver, 36h
Front Hub: Sealed Female 10 mm Axle, 36h
Rear Tire: United In-Direct 20" x 2.10"
Front Tire: United In-Direct 20" x 2.35"
Seat: United Seat / Post Combo
Seatpost: United Seat / Post Combo, 25.4 mm Diameter
Seat Clamp: Alloy
