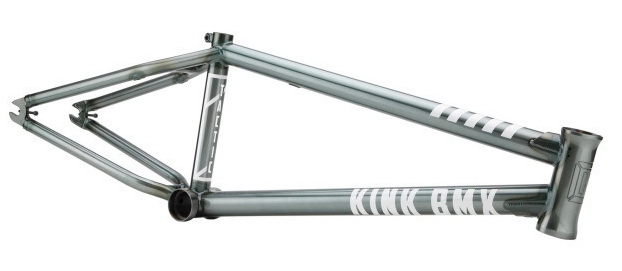

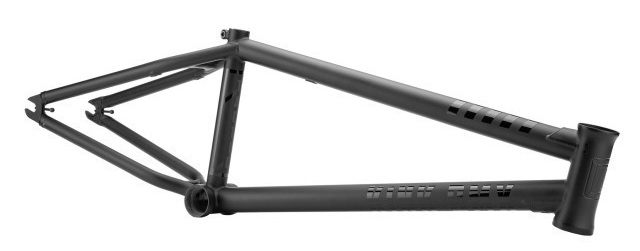

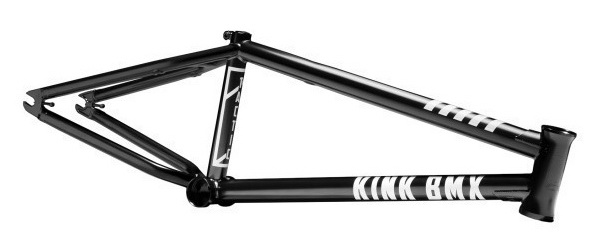

Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered rear tubes, integrated headset
Geometry:
Top tube length (TT): 20.75", 21.0" or 21.25"
Rear triangle length (CS): 13" (33cm) - 13.55" (34.42cm)
Head tube length: 4.6" (11.68cm)
Head tube angle (HA): 75°
Seat tube angle (SA): 71°
Bottom bracket height: 11.6" (29.46cm)
Frame height (SO): 8.5" (21.59cm)
Seat clamp: integrated
Seat post diameter: 25.4mm
Bottom bracket: Mid BB
Dropouts: Investment Cast, 6.5mm thick, 14mm axle mount
Chain tensioner: integrated
Brake type: U-Brake
Brake base: screwable, M6
Brake base included: No
Rotor compatible: Yes
Features: Wide rear triangle for thick tires, investment cast rear triangle cross brace and dropouts
